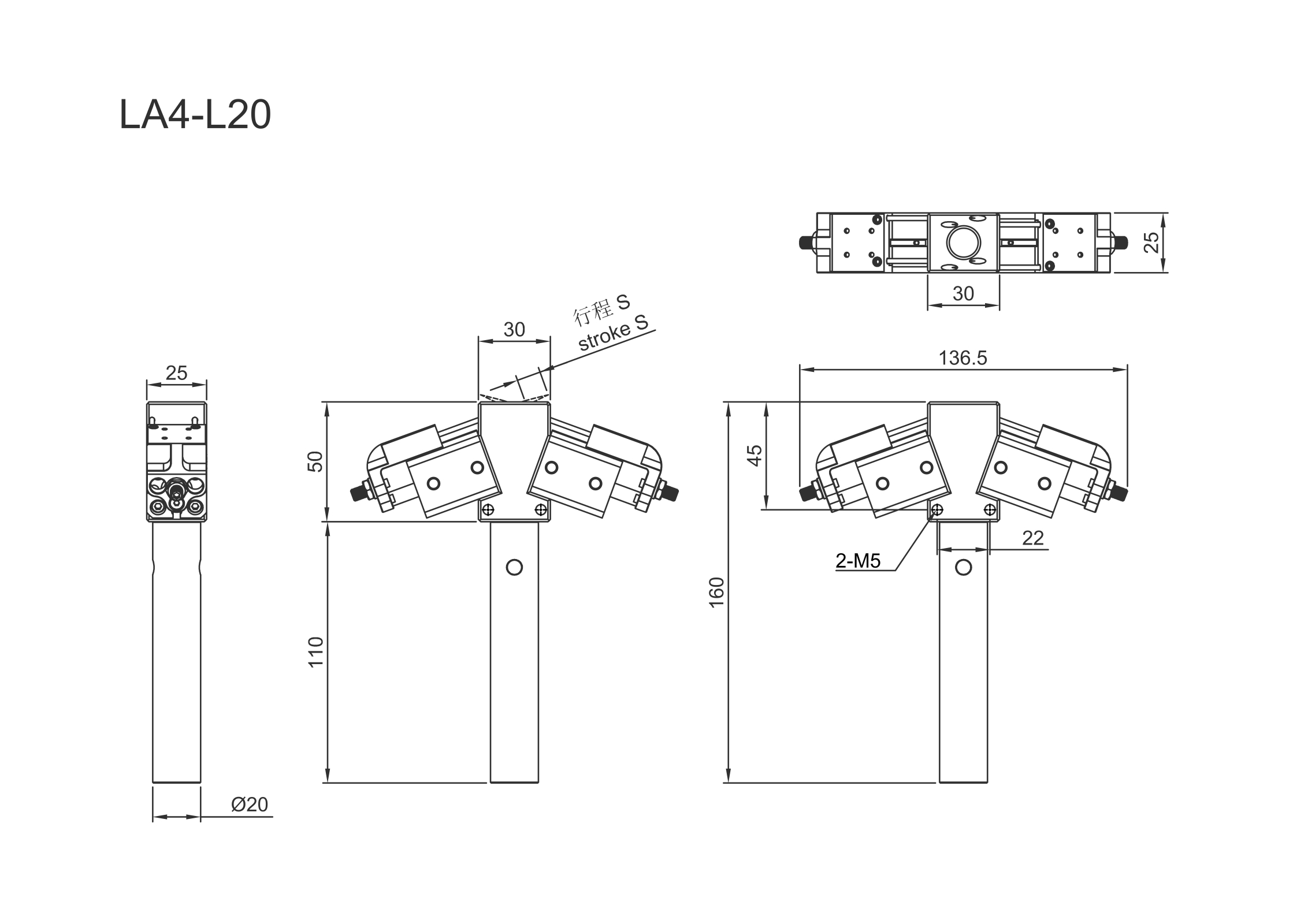

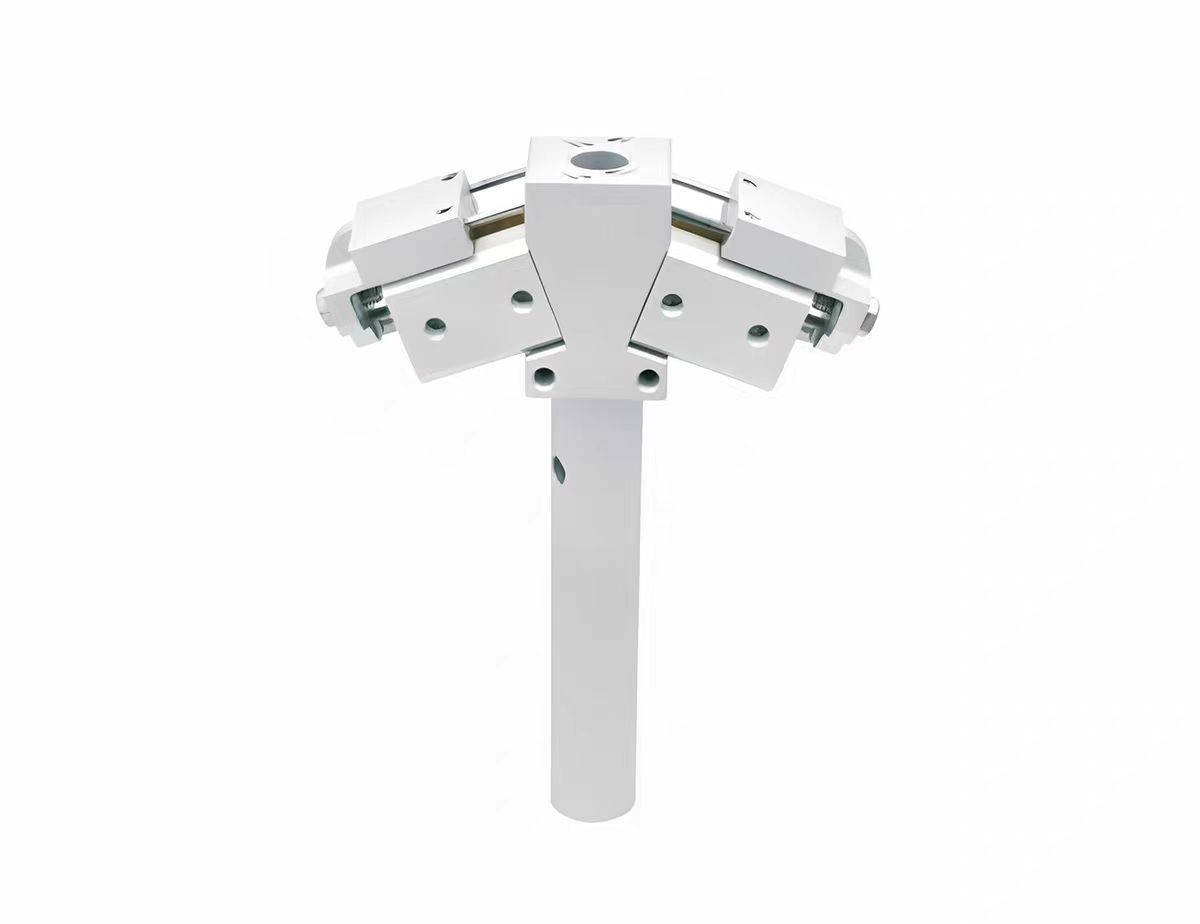

Pneumatic Needle Gripper LA4-L20
The pneumatic needle clamp is a very special and highly efficient pneumatic fixture. It achieves positioning and clamping by driving multiple slender steel needles to penetrate or press against the workpiece. It plays a crucial role in modern manufacturing, especially in flexible production and high-efficiency processing.
Product Details
| Model | Medium | Pressure range | Temperature range | Opening total gripping force at 6 bar | Needle stroke s | Cycle air consumption | Weight |
|
0
|
Filtered, lubricated / non lubricated compressed air | 3~8bar | -10°~70℃. | 90N | 0~10 mm | 3.5 cm³ | 274g |
